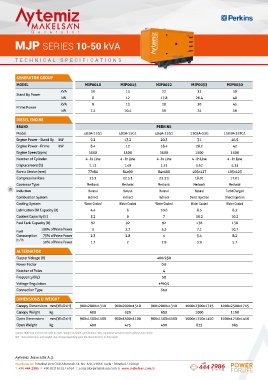

G e n e r a t o r

MJP SERIES 10-50 kVA

TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP
MODEL MJP0010 MJP0015 MJP0022 MJP0033 MJP0050
kVA 10 15 22 33 50
Stand By Power
kW 8 12 17.8 26.4 40
kVA 9 13 20 30 45
Prime Power
kW 7.2 10.4 16 24 36
DIESEL ENGINE
BRAND PERKINS
Model 403A-11G1 403A-15G1 404A-22G1 1103A-33G 1103A-33TG1
Engine Power - Stand By kW 9.2 13.2 20.3 31 46.5
Engine Power - Prime kW 8.4 12 18.4 28.2 42
Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line 4 - In Line
Displacement (lt) 1.13 1.49 2.21 3.62 4.33
Bore x Stroke (mm) 77x81 84x90 84x100 105x127 105x125
Compression Rate 23:1 22.5:1 23.3:1 18.01 17.01
Governor Type Mechanic Mechanic Mechanic Mechanic Mechanic
20
Induction Natural Natural Natural Natural TurboCharged
Combustion System Indirect Indirect Indirect Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 4.4 6 10.6 8.3 8.3
Coolant Capacity (lt) 5.2 6 7 10.2 10.2
Fuel Tank Capacity (lt) 92 92 92 138 138
Fuel 100% of Prime Power 3 3.7 5.3 7.1 10.7
Consumption 75% of Prime Power 2.3 2.8 4 5.4 8.2
lt / h
50% of Prime Power 1.7 2 2.9 3.9 5.7
ALTERNATOR
Output Voltage (V) 400/230
Power Factor 0.8
Number of Poles 4
Frequency (Hz) 50
Voltage Regulation ±%0,5
Connection Type Star
DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 900x2000x1310 900x2000x1310 900x2000x1310 1000x2300x1715 1000x2300x1715
Canopy Weight kg 600 620 650 1000 1100
Open Dimensions mm (WxDxH) 900x1500x1100 900x1500x1100 900x1500x1100 1000x1750x1450 1000x1750x1450
Open Weight kg 400 475 490 825 965

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project.
