P. 15
G e n e r a t o r G e n e r a t o r

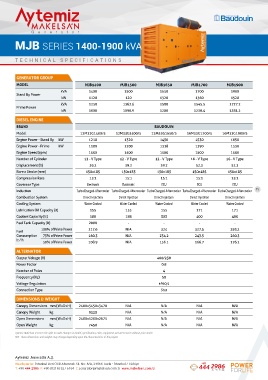

MJB SERIES 825-1250 kVA MJB SERIES 1400-1900 kVA
TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP GENERATOR GROUP
MODEL MJB0825 MJB0900 MJB1000 MJB1100 MJB1250 MODEL MJB1400 MJB1500 MJB1650 MJB1700 MJB1900
kVA 825 900 1000 1100 1250 kVA 1400 1500 1650 1700 1900
Stand By Power Stand By Power
kW 660 720 800 880 1000 kW 1120 120 1320 1360 1520
kVA 750 818.2 909 1000 1136.3 kVA 1250 1363.6 1500 1545.5 1727.2
Prime Power Prime Power
kW 600 654.5 727.2 800 909 kW 1000 1090.9 1200 1236.4 1381.2
DIESEL ENGINE DIESEL ENGINE
BRAND BAUDOUIN BRAND BAUDOUIN
Model 6M33G825/5 12M26G900/5 12M26G1000/5 12M26G1100/5 12M33G1250/5 Model 12M33G1400/5 12M33G1500/5 12M33G1650/5 16M33G1700/5 16M33G1900/5
Engine Power - Stand By kW 725 793 902 973 1108 Engine Power - Stand By kW 1210 1320 1450 1530 1650
Engine Power - Prime kW 659 725 820 889 1007 Engine Power - Prime kW 1100 1200 1318 1390 1530
Engine Speed (rpm) 1500 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 6 - V Type 12 - V Type 12 - V Type 6 - In Line 12 - V Type Number of Cylinder 12 - V Type 12 - V Type 12 - V Type 16 - V Type 16 - V Type
Displacement (lt) 19.60 31.80 31.80 31.80 39.2 Displacement (lt) 39.2 39.2 39.2 52.3 52.3
Bore x Stroke (mm) 150x185 150x150 150x150 150x150 150x185 Bore x Stroke (mm) 150x185 150x185 150x185 150x185 150x185
Compression Rate 15.0:1 15.7:1 15.7:1 15.7:1 15:1 Compression Rate 15:1 15:1 15:1 15:1 15:1
Governor Type Electronic Electronic Electronic Electronic Electronic Governor Type Electronic Electronic ECU ECU ECU
Induction TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler Induction TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler 15
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 61 109 109 109 155 Lubrication Oil Capacity (lt) 155 155 155 171 171
Coolant Capacity (lt) 159 148 148 148 188 Coolant Capacity (lt) 188 188 303 400 400
Fuel Tank Capacity (lt) 2000 2000 2000 2000 2000 Fuel Tank Capacity (lt) 2000 - - - -
Fuel 100% of Prime Power 150.1 172.5 196.8 205.0 198.4 Fuel 100% of Prime Power 217.6 N/A 324 327.5 358.2
Consumption 75% of Prime Power 112.2 130.4 147.2 154.1 147 Consumption 75% of Prime Power 160.3 N/A 234.2 243.5 260.3
lt / h lt / h
50% of Prime Power 72.5 91 101.8 105.7 100.3 50% of Prime Power 108.9 N/A 156.1 166.7 176.2
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1800x5300x3000 2000x4950x3425 2000x4950x3425 2000x4950x3425 2400x5450x3470 Canopy Dimensions mm (WxDxH) 2400x5450x3470 N/A N/A N/A N/A
Canopy Weight kg 7480 7790 7890 8250 9035 Canopy Weight kg 9120 N/A N/A N/A N/A
Open Dimensions mm (WxDxH) 2200x5300x2580 2000x4900x2580 2000x4900x2580 2000x4900x2580 2400x5200x2675 Open Dimensions mm (WxDxH) 2400x5200x2675 N/A N/A N/A N/A
Open Weight kg 6000 6310 6410 6770 7370 Open Weight kg 7450 N/A N/A N/A N/A
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
