G e n e r a t o r G e n e r a t o r

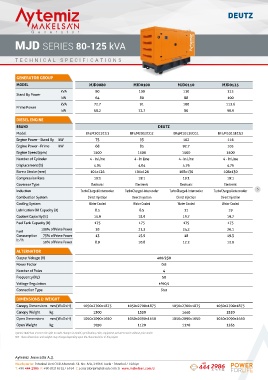

MJD SERIES 22-70 kVA MJD SERIES 80-125 kVA
TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP GENERATOR GROUP
MODEL MJD0022 MJD0033 MJD0044 MJD0055 MJD0070 MODEL MJD0080 MJD0100 MJD0110 MJD0125
kVA 22 33 44 55 70 kVA 80 100 110 125
Stand By Power Stand By Power
kW 18 26 35 44 56 kW 64 80 88 100
kVA 20 30 40 50 63.6 kVA 72.7 91 100 113.6
Prime Power Prime Power
kW 16 24 32 40 50.9 kW 58.2 72.7 80 90.9
DIESEL ENGINE DIESEL ENGINE
BRAND DEUTZ BRAND DEUTZ
Model BFM3G1 BFM3G2 BFM3T BFM3C BF4M2012 Model BF4M2012CG1 BF4M2012CG2 BF4M1013ECG1 BF4M1013ECG2
Engine Power - Stand By kW 22 32 44 50 60 Engine Power - Stand By kW 75 93 102 116
Engine Power - Prime kW 20 29 40 45 54 Engine Power - Prime kW 68 85 92.7 105
Engine Speed (rpm) 1500 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500
Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line 4 - In Line Number of Cylinder 4 - In Line 4 - In Line 4 - In Line 4 - In Line
Displacement (lt) 3.168 3.168 3.168 3.168 4.04 Displacement (lt) 4.04 4.04 4.76 4.76
Bore x Stroke (mm) 98x105 98x105 98x105 98x105 101x126 Bore x Stroke (mm) 101x126 101x126 108x130 108x130
Compression Rate 18.5:1 18.5:1 18.5:1 18.5:1 19:1 Compression Rate 19:1 19:1 19:1 19:1
Governor Type Electronic Electronic Electronic Electronic Electronic Governor Type Electronic Electronic Electronic Electronic
Induction Natural Natural TurboCharged TurboCharged-Intercooler TurboCharged Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler 5
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 7.5 7.5 7.5 7.5 8.5 Lubrication Oil Capacity (lt) 8.5 8.5 11 19
Coolant Capacity (lt) 4.8 4.8 4.8 4.8 15.9 Coolant Capacity (lt) 15.9 15.9 19.7 19.7
Fuel Tank Capacity (lt) 90 90 125 125 175 Fuel Tank Capacity (lt) 175 175 175 175
Fuel 100% of Prime Power 5.4 7.7 10.3 11.2 13.7 Fuel 100% of Prime Power 18 21.3 24.2 26.1
Consumption 75% of Prime Power 4 5.38 8 8.7 10.2 Consumption 75% of Prime Power 13 15.9 18 19.3
lt / h lt / h
50% of Prime Power 2.8 3.9 5.5 6 7 50% of Prime Power 8.9 10.8 12.2 12.9
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 900x2000x1310 1000x2300x1715 1000x2300x1715 1000x2300x1715 1050x2700x1875 Canopy Dimensions mm (WxDxH) 1050x2700x1875 1050x2700x1875 1050x2700x1875 1050x2700x1875
Canopy Weight kg 760 895 940 1050 1230 Canopy Weight kg 1300 1350 1440 1520
Open Dimensions mm (WxDxH) 900x1500x1100 1000x1750x1450 1000x1750x1450 1000x1750x1450 1050x2090x1650 Open Dimensions mm (WxDxH) 1050x2090x1650 1050x2090x1650 1050x2090x1650 1050x2090x1650
Open Weight kg 620 735 790 835 960 Open Weight kg 1050 1120 1170 1265
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
