G e n e r a t o r G e n e r a t o r

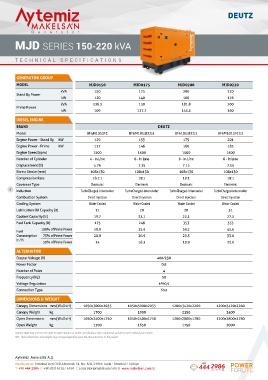

MJD SERIES 150-220 kVA MJD SERIES 275-440 kVA

TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS

GENERATOR GROUP GENERATOR GROUP
MODEL MJD0150 MJD0175 MJD0200 MJD0220 MODEL MJD0275 MJD0360 MJD0400 MJD0440
kVA 150 175 200 220 kVA 275 360 400 440
Stand By Power Stand By Power
kW 120 140 160 176 kW 220 288 320 352
kVA 136.3 159 181.8 200 kVA 250 327.2 363.6 400
Prime Power Prime Power
kW 109 127.2 145.5 160 kW 200 261.8 290.9 320
DIESEL ENGINE DIESEL ENGINE
BRAND DEUTZ BRAND DEUTZ
Model BF4M1013FC BF6M1013ECG1 BF61013ECG2 BF6M1013FCG3 Model BF6M1015C LA GA BF6M1015C LA G3A BF6M1015C LA G4 BF6M1015CP LAG
Engine Power - Stand By kW 129 153 175 201 Engine Power - Stand By kW 231 314 345 365
Engine Power - Prime kW 117 146 160 183 Engine Power - Prime kW 208 285 313 332
Engine Speed (rpm) 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500
Number of Cylinder 4 - In Line 6 - In Line 6 - In Line 6 - In Line Number of Cylinder 6 - V Type 6 - V Type 6 - V Type 6 - V Type
Displacement (lt) 4.76 7.15 7.15 7.15 Displacement (lt) 11.9 11.9 11.9 11.9
Bore x Stroke (mm) 108x130 108x130 108x130 108x130 Bore x Stroke (mm) 132x145 132x145 132x145 132x145
Compression Rate 18.1:1 19:1 19:1 19:1 Compression Rate 16.5:1 16.5:1 16.5:1 16.5:1
Governor Type Electronic Electronic Electronic Electronic Governor Type Electronic Electronic Electronic Electronic
6
Induction TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler Induction TurboCharged TurboCharged-Intercooler TurboCharged-Intercooler TurboCharged-Intercooler
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 11 20 20 31 Lubrication Oil Capacity (lt) 36 36 36 36
Coolant Capacity (lt) 19.7 23.1 23.1 27.3 Coolant Capacity (lt) 62 62 62 62
Fuel Tank Capacity (lt) 175 248 353 353 Fuel Tank Capacity (lt) 453 554 554 554
Fuel 100% of Prime Power 28.9 35.9 39.2 45.6 Fuel 100% of Prime Power 48 70 72.8 77.1
Consumption 75% of Prime Power 20.9 26.9 29.5 33.6 Consumption 75% of Prime Power 36 52.4 54.8 57.8
lt / h lt / h
50% of Prime Power 14 18.3 19.9 22.6 50% of Prime Power 24 34.7 36.9 39.2
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1050x3000x2035 1050x3000x2035 1200x3420x2260 1200x3420x2260 Canopy Dimensions mm (WxDxH) 1400x3300x2700 1600x3300x2700 1600x3300x2700 1600x3300x2700
Canopy Weight kg 1700 1900 2150 2400 Canopy Weight kg 2950 3400 3500 3650
Open Dimensions mm (WxDxH) 1050x2400x1750 1050x2400x1750 1200x2800x1780 1200x2800x1780 Open Dimensions mm (WxDxH) 1400x3300x2100 1600x3300x2350 1600x3300x2350 1600x3300x2350
Open Weight kg 1390 1650 1750 2000 Open Weight kg 2350 2900 3000 3150

Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
