G e n e r a t o r G e n e r a t o r

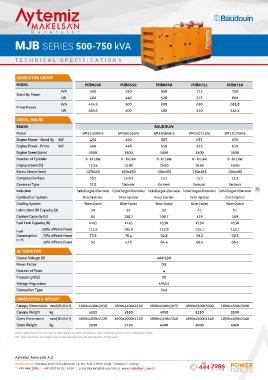

MJB SERIES 275-440 kVA MJB SERIES 500-750 kVA
TECHNICAL S PECIF ICA TIONS TECHNICAL S PECIF ICA TIONS
GENERATOR GROUP GENERATOR GROUP
MODEL MJB0275 MJB0300 MJB0350 MJB0400 MJB0440 MODEL MJB0500 MJB0550 MJB0660 MJB0715 MJB0750
kVA 275 300 350 400 440 kVA 500 550 660 715 750
Stand By Power Stand By Power
kW 220 240 280 320 352 kW 400 440 528 572 600
kVA 250 273 318.2 363.6 400 kVA 454.5 500 600 650 681.8
Prime Power Prime Power
kW 200 218.4 254.5 290.9 320 kW 363.6 400 480 520 545.5
DIESEL ENGINE DIESEL ENGINE
BRAND BAUDOUIN BRAND BAUDOUIN
Model 6M16G275/5 6M16G300/5 6M16G350/5 6M21G400/5 6M21G440/5 Model 6M21G500/5 6M26G550/5 6M33G660/5 6M33G715/5 6M33G750/5
Engine Power - Stand By kW 264 280 320 385 405 Engine Power - Stand By kW 450 490 587 633 670
Engine Power - Prime kW 240 255 291 350 368 Engine Power - Prime kW 409 448 536 575 610
Engine Speed (rpm) 1500 1500 1500 1500 1500 Engine Speed (rpm) 1500 1500 1500 1500 1500
Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line 6 - In Line Number of Cylinder 6 - In Line 6 - In Line 6 - In Line 6 - In Line 6 - In Line
Displacement (lt) 9.726 9.726 9.726 12.54 12.54 Displacement (lt) 12.54 15.90 19.60 19.60 19.60
Bore x Stroke (mm) 126x130 126x130 126x130 127x165 127x165 Bore x Stroke (mm) 127x165 150x150 150x185 150x185 150x185
Compression Rate 17:1 17:1 17:1 16:1 16:1 Compression Rate 16:1 15.9:1 15:1 15:1 15:1
Governor Type Electronic Electronic ECU Electronic Electronic Governor Type ECU Electronic Electronic Electronic Electronic
Induction TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler Induction TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler TurboCharged-Aftercooler 13
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled Cooling System Water Cooled Water Cooled Water Cooled Water Cooled Water Cooled
Lubrication Oil Capacity (lt) 26 26 26 30 30 Lubrication Oil Capacity (lt) 30 52 52 61 61
Coolant Capacity (lt) 44 44 50 55 55 Coolant Capacity (lt) 55 108.7 108.7 129 159
Fuel Tank Capacity (lt) 585 585 585 890 890 Fuel Tank Capacity (lt) 1145 1145 1530 1530 1530
Fuel 100% of Prime Power 56.9 58.8 70.5 85 85 Fuel 100% of Prime Power 112.9 104.9 122.8 135.1 135.1
Consumption 75% of Prime Power 42.2 45.2 52.3 63.5 63.5 Consumption 75% of Prime Power 77.8 78.4 92.8 99.3 99.3
lt / h lt / h
50% of Prime Power 28.4 32.6 35.3 43.1 43.1 50% of Prime Power 52 53.6 64.4 66.4 66.4
ALTERNATOR ALTERNATOR
Output Voltage (V) 400/230 Output Voltage (V) 400/230
Power Factor 0.8 Power Factor 0.8
Number of Poles 4 Number of Poles 4
Frequency (Hz) 50 Frequency (Hz) 50
Voltage Regulation ±%0,5 Voltage Regulation ±%0,5
Connection Type Star Connection Type Star
DIMENSIONS & WEIGHT DIMENSIONS & WEIGHT
Canopy Dimensions mm (WxDxH) 1400x3300x2460 1400x3700x2626,5 1400x3700x2626,5 1400x3700x2626,5 1400x3700x2626,5 Canopy Dimensions mm (WxDxH) 1600x4400x2650 1600x4400x2650 1800x4500x3075 1800x4500x3000 1800x4500x3000
Canopy Weight kg 2700 3150 3250 3350 3540 Canopy Weight kg 4105 4350 4950 5250 5590
Open Dimensions mm (WxDxH) 1400x2800x1860 1400x3250x1750 1400x3250x1750 1400x3250x1750 1400x3250x1750 Open Dimensions mm (WxDxH) 1600x4000x2220 1600x4000x2220 1800x4350x2340 1800x4500x2340 1800x4500x2340
Open Weight kg 2350 2600 2700 2800 2900 Open Weight kg 3590 3750 4900 4900 4900
Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice. Aytemiz-Makelsan reserves the right to make changes in model, specification, color, equipment and accessories without prior notice.
N/A: These dimensions and weights may change depending upon the characteristics of the project. N/A: These dimensions and weights may change depending upon the characteristics of the project.
