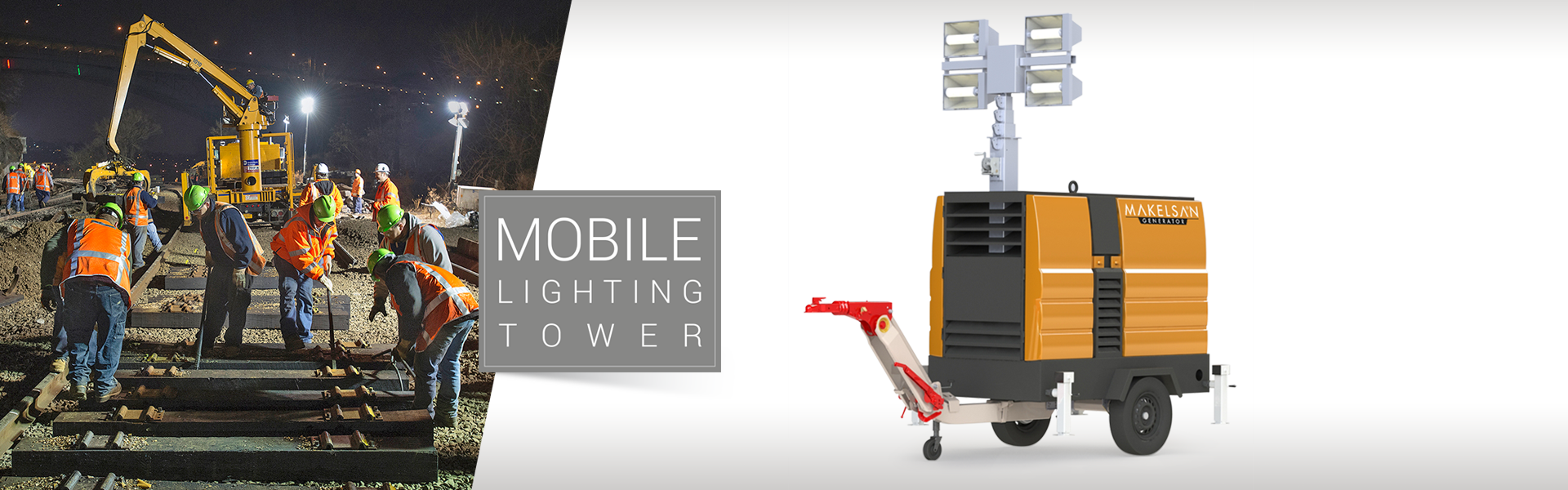

LIGHTING TOWER GENERAL FEATURES

ENGINE
Cylinder Quantity : 3-4 Cylinders
Cooling : Water Cooled
Fuel Type : Diesel
RPM : 1500 d/d

GENERATOR
Type : Synchronous
Frequency : 50 Hz
Degree of Protection : IP23

LAMP
Type : : Min 4000 W (4 x 1000W Metal Halide High Efficiency floodlights capable or Compatible LED lights 6 x 240 W)
Rotation : 340 degree

MAST
Direction : Vertical
Mast Height : Min 7.62 Meters/25 Feet
Type : Galvanized Telescopic Section
Stabilizers : 4 Adjustable Manual Stabilizers
Lifting System : Mechaniz or Hydraulic Lifting System
Wind Stability : Wind Stability Min up to 80 km/h

Tower Light Structure : Structure assembled on road tow-trailer, single axle, adjustable in height tow-bar, handle brake

CANOPY
Lockable Doors
Produced of galvanized steel sheets
Protects system against all weather conditions Designed for minimize noise
Doors with window in front of control panel to observe instruments
Fine design enables sufficient air circulation
Spacious interior enables easy maintenance and service
Electrostatic powder coated
Heavy duty robust structure

Control panel &ATS	Control module	Ammeter-Voltmeter
		Start–Stop key
		Digital frequency display
		Protection from low oil pressure
		Protection from high temperature
		Protection from high / low speed
		Protection for low fuel
	Visible and audible alarm w / automatic stop mechanism
	Main CB &CBs for lamps
	Hour meter and fuel level gauge
Trailer	Single axle (13-15)” wheels in compliance with directive 2009/40/EC
	Rolled steel construction, heavy-duty robust structure
	Torsion suspension system suitable for rough terrain
	8 hours daily fuel tank in trailer frame complete with float, draining cap, filing.
	Self-rotating towing hook with spring suspension
	Three retractable support jacks with adjustable heights
Features	(i) Electrical coiled cable complete with housing (ii) On /Off switch for each lamp
Special feature	(i) Central Hook (ii) Fast connect /disconnect system for the battery (iii) Series of alarms to protect the engine
